DESIGNED TO WORK IN SMALL SPACES

SMAC BIN VENTS

SMAC Bin Vents are designed to be easily dropped in place on top of your storage silos, able to handle Carbon, Lime, and any heavy or fine solid.

  • Lime Storage Silos

  • Carbon Storage Silos

  • Direct Reduced Iron (DRI)

  • Conveying Systems

  • Transfer Points

Application Focus Video: Bin Vents

SMAC Bin Vents installed on top of storage silos

Venting & Reclaiming

Feeding your furnace with carbon, lime, and other alloy injections is just part of the job. Having to deal with the dust shouldn’t be. SMAC prevents over-pressuring your storage silos by allowing clean, filtered air to escape while keeping material inside. They vent and clean displaced air on your pneumatic conveying systems and transfer points while reclaiming the dry bulk material for use.

SMAC industrial air cleaners are sized for your silos, elevators, and conveyor equipment. They are easily integrated into your current mill process.

SMAC Bin Vent Features

  • Heavy-duty 7 & 10 gauge construction including military-grade doors
  • No external bolt holes to prevent leaks and rust
  • Domed roof for weather resistance
  • SMAC filters with the most advanced nanofiber technology for filter life and efficiency – MERV 10 through MERV 16
  • Self-maintaining technology with adjustable pulse action cleaning
  • Standard model sizes handle air volumes from 350 to 25,200 CFM
  • Welded housing ships ready to install for quick installation
  • Direct mount installation requires no ductwork
  • 15-Year warranty
SMAC being installed on top of a steel mill storage silo as a bin vent

Energy Efficient

The self-maintaining technology of SMAC consists of a powerful and systematic pulse-jet cleaning system. High-performance, manifold mounted valves are triggered by energy-saving smart controllers for on-demand cleaning.

This reduces system wear, increases filter life, and minimizes service time. A customizable pulse schedule can be set to conform to your steel mill’s operation timetable.

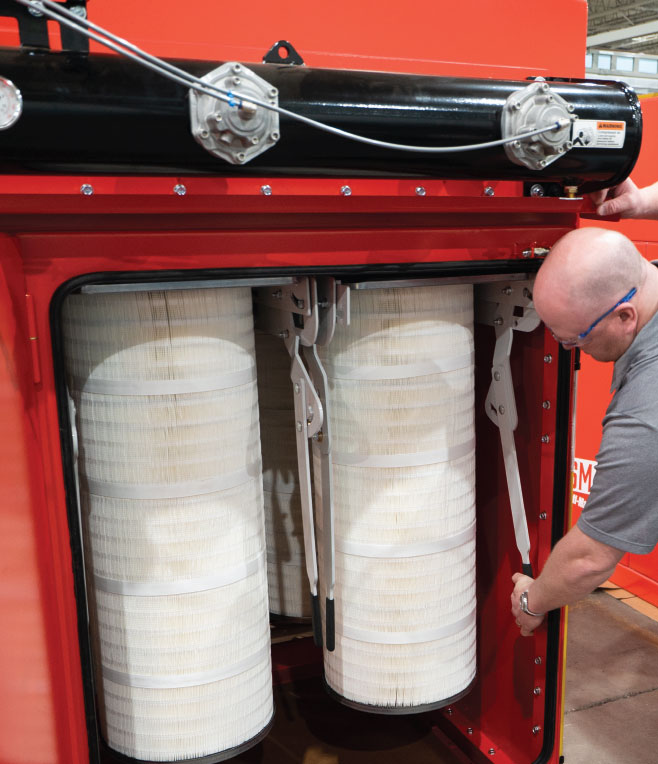

Man replacing filters in the Self-Maintaining Air Cleaner

Easy Filter Changeout

For most steel mill applications, bin vent filter life expectancy is 2 to 4 years. When it’s time to change them, nothing is easier or more secure than with the SMAC. Installations of these units are typically on silos, bucket elevators, conveyor discharge, and transfer points. Safety in these small and often precarious spaces is obviously a priority. Filter exchange is done through convenient and easy front access to the housing. Anti-ramping, even-locking lift rails make filter installation smooth and precise.

SMAC is designed to work in small spaces. It is a true workhorse that handles high airflow and bulk solids.

Graphic illustration: 40% Smaller Than a Traditional Baghouse Dust Collector

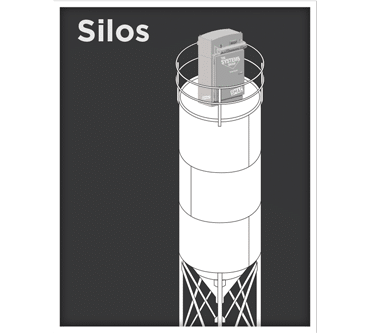

Illustration representing Storage Silos
Illustration representing Conveyor Discharge Points
Illustration representing Bucket Elevators

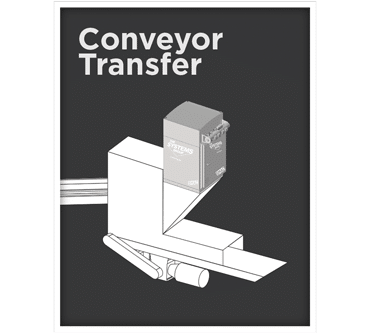

Illustration representing Conveyor Transfer Points

SMAC BIN VENT VARIATIONS

The table below shows our standard models. We can also build a custom system for your specific conveyor, elevator, or silo bin vent application. Leave the bin vent sizing to our experts!

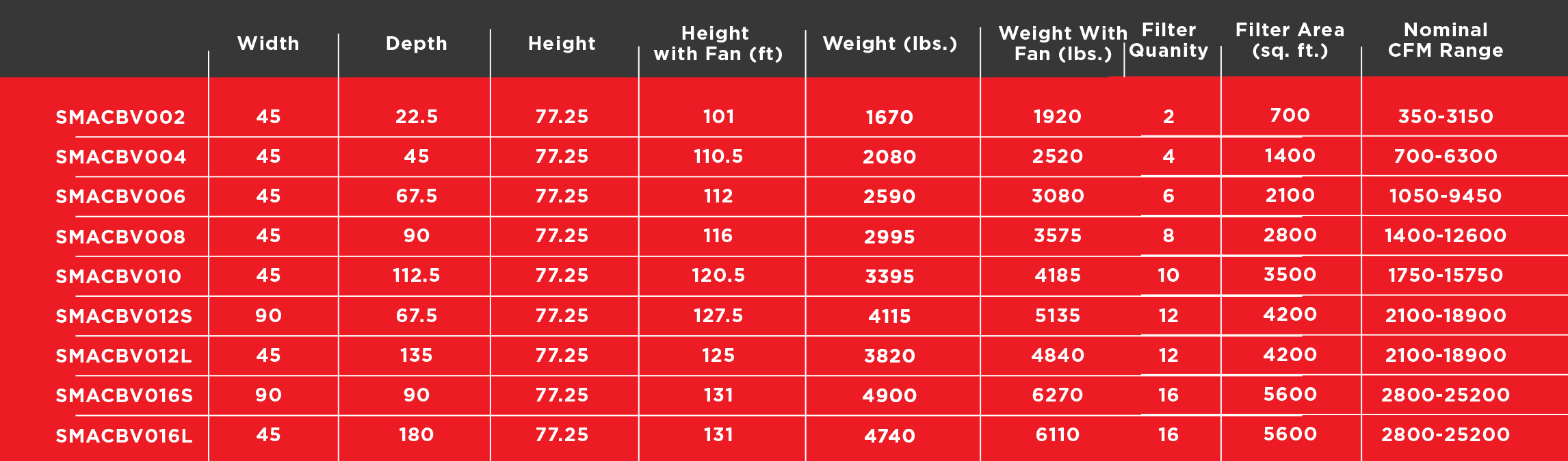

Chart of SMAC System Variations

Project Photos

These are installations of SMAC Bin Vent dust collectors that some of our customers are using on their storage silos.

Next up: Choosing a Bin Vent Filter for Your Steel Mill Process (An 8-point checklist)
